Incorrect pole height or diameter can lead to unstable structures and ineffective lighting, especially in challenging environments.
The best solar light pole balances lighting performance and safety by matching the right height and diameter to the site and system design.
When choosing a solar light pole, it's important to consider more than just price. Here is a practical guide based on field experience and standard engineering practices.
What Are Solar Light Poles?

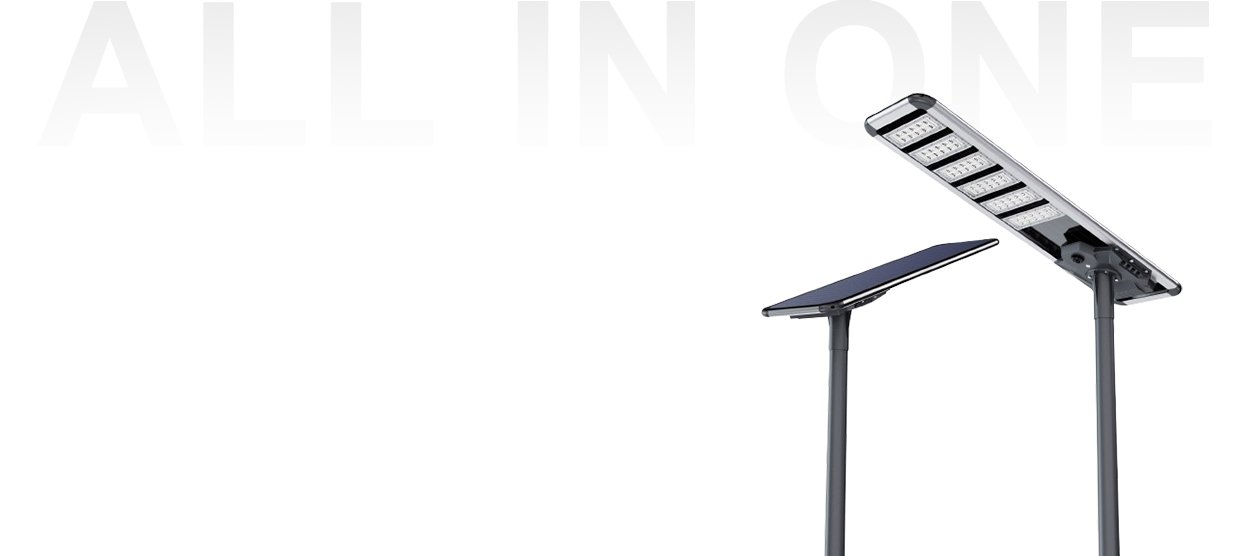

Solar light poles are vertical structures designed to support solar lighting systems. Unlike traditional poles connected to the electrical grid, solar poles integrate an off-grid power setup.
Each solar pole typically holds:
- A solar panel mounted at the top
- An LED lamp
- A battery, often inside the pole or attached separately
The structure and stability of the pole directly impact lighting effectiveness and system longevity. If the pole is too weak or too short, the whole setup could fail—either through poor lighting coverage or physical damage in wind-prone areas.
Standard Specifications for Solar Light Poles
The most common specifications in solar pole design are height and diameter. These affect the lighting angle, wind resistance, and mechanical strength.
Pole height typically ranges from 3 to 12 meters. Diameter varies from 60 mm to 165 mm depending on height, location, and pole type.
Standard Height for Solar Light Poles
The height of the pole affects how wide and evenly the light is distributed. A low pole gives brighter light over a small area. A tall pole spreads the light wider but may reduce intensity at the ground level.
Typical solar pole heights range from 3m for small garden areas to 12m for highways and wide roads.
Common Height Recommendations
| Application | Recommended Pole Height |
|---|---|
| Garden and Pathways | 3–4 meters |
| Residential Areas | 4–6 meters |
| Urban Streets & Parks | 6–8 meters |
| Highways and Rural Roads | 9–12 meters |
- 3–4 meters: Ideal for small-scale setups like pathways or private gardens.
- 6–8 meters: Often used in commercial parking lots, schools, or public parks.
- 10–12 meters: Suitable for highways or large roads requiring fewer poles for the same coverage.
Choosing the right height improves safety, energy efficiency, and overall aesthetics of the installation.
Standard Diameter of Solar Light Poles
Diameter is crucial for the strength of the pole. It determines whether the structure can handle the weight of solar panels and batteries, and resist strong winds.
Solar light pole diameter typically ranges from 60 mm to 165 mm depending on height and environmental demands.
Diameter Guidelines
| Pole Height | Top Diameter | Base Diameter |
|---|---|---|
| 3–5 meters | 60–76 mm | 90–114 mm |
| 6–8 meters | 76–89 mm | 114–140 mm |
| 9–12 meters | 89–114 mm | 140–165 mm |

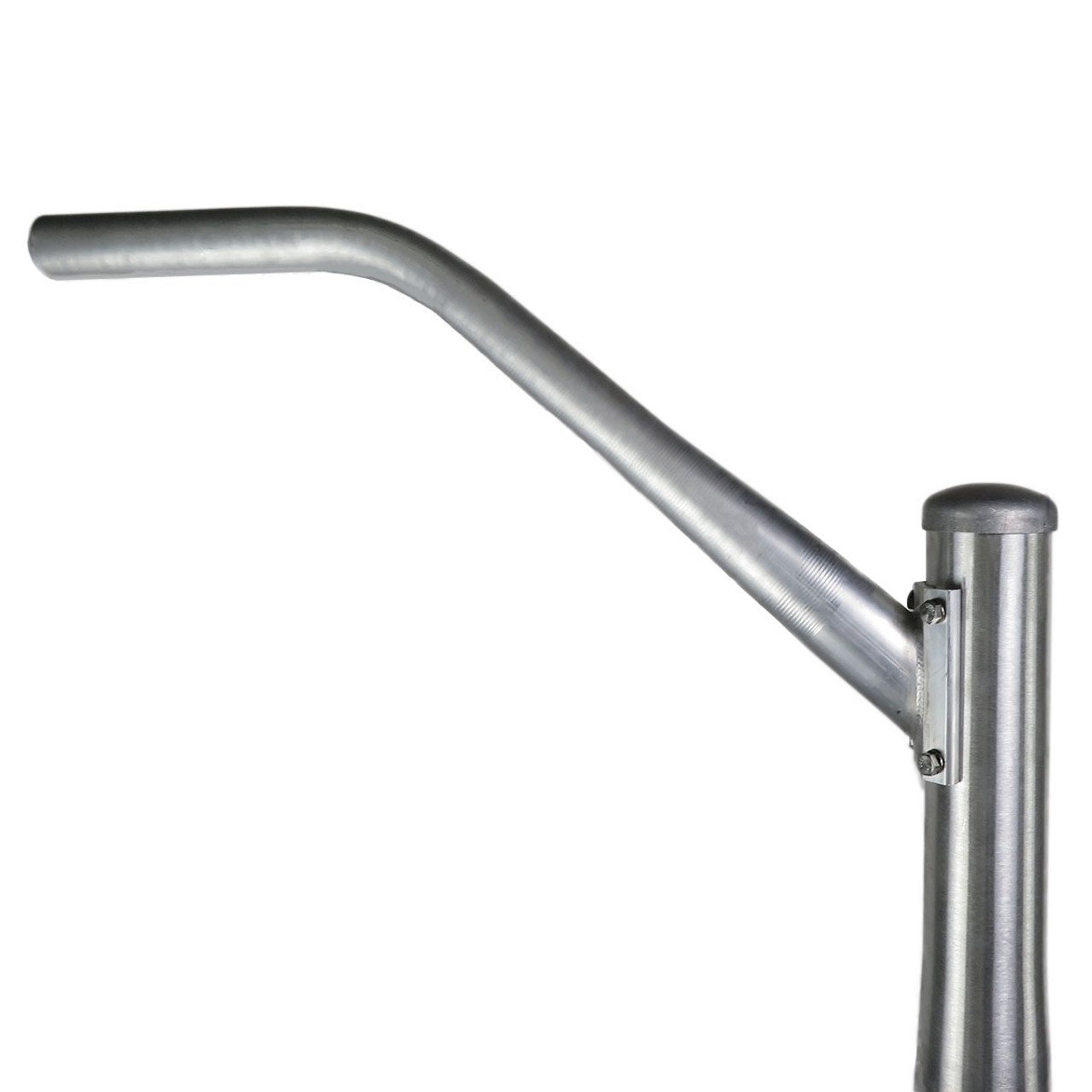

A taller pole requires a thicker diameter for structural balance. In wind zones or areas with heavy equipment, base diameter should be wider. Tapered poles (wide at the bottom, narrow at the top) are usually better than cylindrical ones for high-load applications.
How to Select the Right Solar Light Pole?
Several factors influence the choice of solar pole: the size of the solar panel, the battery weight, light intensity, site exposure, and wind rating.
To choose the right pole, consider location, load, and lighting goals.
Pole Selection Checklist
- Location type: Rural, coastal, urban
- Lighting application: Residential, public, or commercial
- Lighting area size
- Solar panel size and tilt angle
- Battery weight and placement
- Wind load rating
- Material preference (steel, aluminum, fiberglass)
- Installation type (embedded or flange-mounted)
Urban vs. Rural Installation Needs
| Area Type | Pole Height | Base Diameter | Wind Load | Material |
|---|---|---|---|---|
| Urban | 6–8 meters | 114–140 mm | Medium | Steel/Aluminum |
| Rural | 9–12 meters | 140–165 mm | High | Galvanized Steel |
Poles in open rural spaces are more exposed to wind. In such areas, a thicker base and deeper foundation are necessary. In towns and cities, aesthetics may matter more, so slim aluminum poles are often used.
Solar Light Poles by Application Type
Each lighting setup has its own pole size requirement. It's important to match the pole design with the exact need.
Pole height and diameter should be selected based on the target application.
Application-Specific Pole Specs
| Application | Height Range | Base Diameter | Panel Size | Notes |
|---|---|---|---|---|
| Street Lighting | 7–9 meters | 114–140 mm | 150–250 W | Designed for road coverage |
| Garden Lighting | 3–4 meters | 76–90 mm | 30–60 W | Aesthetic and decorative |
| Parking Areas | 6–8 meters | 114–140 mm | 100–150 W | Wider angle illumination |
| Rural Off-Grid | 9–12 meters | 140–165 mm | 200–300 W | Long-distance coverage |
Poor pole selection in one type of setting can cause issues such as inadequate brightness or structural failure under load.
Do Solar Panels Affect Pole Dimensions?
Larger solar panels or battery boxes add weight and surface area. Both increase the stress on the pole.
The size and angle of the solar panel significantly impact pole design.
- A 300W panel usually weighs 18–22 kg.
- Panels are often tilted between 30° to 45°, increasing wind drag.
- If a battery box is mounted on the pole, add another 10–15 kg.
Design Considerations
- Larger panels require thicker walls (3.5 mm or more)
- Wind zones call for wider base diameters
- Always use safety factors when calculating load limits
In regions with strong seasonal winds or occasional storms, these adjustments are essential to prevent failure.
Installation Guidelines for Solar Light Poles
Correct installation ensures long-lasting operation and stability.
A strong foundation, proper direction, and secure mounting are key to a durable solar light pole system.
Key Installation Points
- Foundation: Use concrete base (usually 60–100 cm deep depending on pole height)
- Orientation: Face solar panel toward the equator (north in southern hemisphere, south in northern)
- Anti-theft: Lock nuts, buried cables, and welded battery boxes
- Pole type: Choose embedded poles for higher stability in rural or high-wind areas
Every region may need a different approach depending on soil type and local weather. For example, sandy soil requires deeper and wider foundations.
Materials Used in Solar Light Poles
Material choice impacts both cost and performance. Each option has its strengths and trade-offs.
The most common materials are steel, aluminum, and fiberglass.
Comparison Table
| Material | Strength | Corrosion Resistance | Weight | Lifespan | Best Use Cases |
|---|---|---|---|---|---|
| Steel | High | Medium (with coating) | Heavy | 15–25 years | Urban, highways |
| Aluminum | Medium | High | Light | 20–30 years | Coastal, residential |
| Fiberglass | Low | Very High | Medium | 25+ years | Coastal, corrosive areas |
Hot-dip galvanized steel is widely used in Africa due to its balance of strength and cost.
FAQs About Solar Light Poles
What is the best pole height for a residential pathway?
Usually between 3 and 4 meters.
Can these poles be used in areas with strong wind?
Yes, but base diameter and wall thickness must be adjusted accordingly.
What is the standard wall thickness of a solar light pole?
Typically 2.5–4.0 mm, depending on height and environmental factors.
Do these poles need maintenance?
Minimal. Inspect bolts yearly, clean panels monthly, and check the battery system once every 6–12 months.
Are there any international standards?
Yes. Refer to standards like IEC 60598, ISO 9223, and local guidelines for structural requirements.
Conclusion
Choosing the right height and diameter for solar light poles ensures safety, long-term reliability, and proper lighting performance. Whether for urban roads or rural off-grid zones, careful matching of specifications makes all the difference.
