Street lighting design isn't just about placing poles along the road — it's about shaping safer, more energy-efficient, and aesthetically pleasing environments for drivers, pedestrians, and communities. Having worked across multiple African markets in solar infrastructure over the past 15 years, I’ve seen how poor lighting design can literally cost lives, waste budgets, and erode public trust.
This guide breaks down everything from international standards and pole spacing calculations to smart lighting innovations and African case studies. Whether you're a contractor, urban planner, or government consultant, you’ll find actionable insights, field-tested advice, and updated methods to apply in your next project.
What Is Street Lighting Design and Why Does It Matter?
Street lighting design is the structured process of illuminating roadways to enhance safety, visibility, and energy efficiency while aligning with urban planning aesthetics.
In my own experience designing lighting layouts for both highways and remote village roads, the contrast in needs is stark:
- Urban roads demand higher uniformity, smart controls, and anti-glare optics.
- Rural roads prioritize long battery autonomy (for solar systems), wide spacing, and tamper-proof setups.
The Cost of Bad Design
A poorly lit road leads to:
- Increased accident rates due to uneven illumination.
- Wasted energy from over-illumination or outdated lamps.
- Public complaints and frequent maintenance disruptions.
🔑 Key takeaway: Effective road lighting design isn’t optional — it’s a baseline requirement for infrastructure reliability and safety.
Street Lighting Design Standards: Global Guidelines You Should Know
Street lighting design standards like EN 13201, CIE guidelines, and JKR standards set the benchmark for safety, performance, and consistency in lighting design.
Top International Standards to Know
| Standard | Description |
|---|---|
| EN 13201 | European standard for road lighting performance and measurement |
| CIE 115 | Global photometric guidelines for lighting classes |
| JKR (Malaysia) | Specific design norms for Southeast Asia's climates and road types |
| IEC 60598 | International rules for luminaires and safety compliance |
African & Middle Eastern Considerations
In markets like Kenya, Egypt, and Saudi Arabia, we often must strike a balance between adopting international standards and meeting:
- Local visibility norms (e.g., higher light levels for informal markets)
- Utility grid limitations
- Dust and heat-resistance specifications
🔍 Why this matters: Ignoring local regulations can delay project approvals or trigger expensive retrofits.

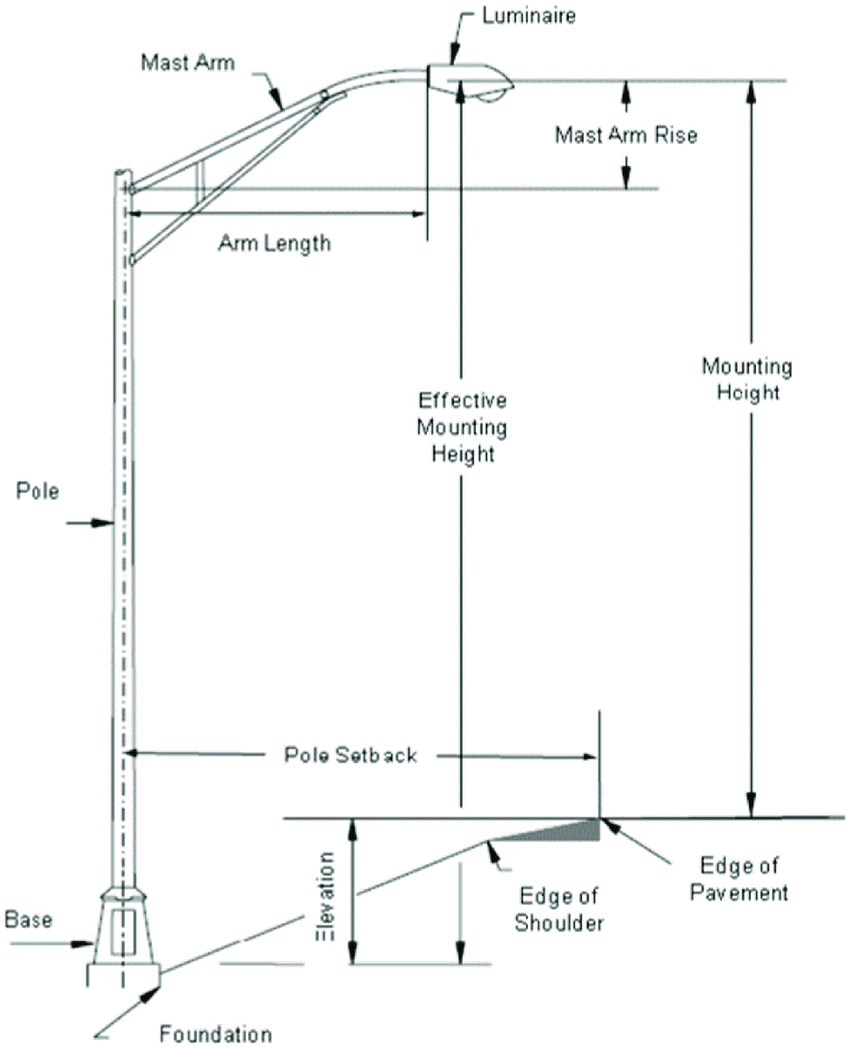

How to Calculate Street Light Pole Height and Spacing?
Street light pole height and spacing depend on road width, pole arm type, lighting class, and the wattage/lumen output of the fixture.
Here’s a simplified reference table I use when calculating layouts:
| Road Width | Pole Height | Spacing (Single Arm) | Spacing (Double Arm) |
|---|---|---|---|
| 6m | 6–7m | 20–25m | 30–35m |
| 12m | 8–9m | 25–30m | 35–40m |
| 20m+ | 10–12m | 30–40m | 40–50m |
Sample Calculation:
For a 12m wide road, using 8m poles and replacing 250W HPS with 60W LED, the optimal spacing is ~28 meters.
⚠️ Pro tip: Always verify uniformity ratio (U0) and minimum illumination levels using software like Dialux or AGi32.
Street Light Pole Foundation Design: Ensuring Long-Term Stability
The foundation of a street light pole is critical for structural stability, especially in regions with high wind speeds or soft soil.
From Nairobi to Lagos, I’ve encountered too many failed poles because of:
- Shallow foundations (less than 1.2m in soft soil)
- No drainage, causing corrosion
- No rebar cages, reducing wind resistance
Foundation Depth Guide
| Soil Type | Recommended Depth |
|---|---|
| Sand | 1.5–2.0m |
| Soft Clay | 1.8–2.5m |
| Rocky | 1.2–1.5m |
📌 Avoid This Mistake: Assuming one-size-fits-all for foundation depth. Site testing and wind analysis are non-negotiable.
LED vs Solar Street Lighting Design: Which One Fits Your Project?
Solar and LED grid-connected street lights serve different use cases, and your environment dictates the smarter option.
Side-by-Side Comparison
| Feature | LED (Grid) | Solar Street Light |
|---|---|---|
| Energy Source | Grid-powered | Solar panel + battery |
| Upfront Cost | Lower | Higher |
| Long-term Savings | Medium | High |
| Suitable For | Cities with grid | Rural/off-grid/remote |
| O&M Complexity | Low | Medium (battery care) |
Design Parameters for Solar
- Panel Size: 100W–180W (monocrystalline preferred)
- Battery: 120Ah–200Ah LiFePO4 for 2–3 days autonomy
- LED Wattage: 30W–80W depending on spacing and road width
✅ Case Example: We deployed 150 solar street lights in Kaduna, Nigeria — reducing crime rates in underlit zones by 40% within 6 months.
Smart Street Lighting Design: IoT and Energy Saving in 2025
Smart street lighting integrates IoT to improve energy savings, predictive maintenance, and traffic management.
Key Functions
- Motion sensors for dimming when no traffic
- Remote monitoring via GSM or LoRa
- Integration with CCTV, air quality sensors
ROI Snapshot
In a pilot with a Kenyan municipality:
- Energy use dropped 57%
- Maintenance calls reduced 70%
- Break-even achieved in 3.2 years
🚦 Why this matters: IoT-enabled lighting aligns with smart city goals and drastically reduces O&M overhead.
Common Mistakes in Street Lighting Design (and How to Avoid Them)
Even seasoned engineers make avoidable mistakes that compromise lighting quality and safety.
Top Pitfalls
- Pole spacing errors — Over or under-spacing leads to dark spots or wasted energy
- Ignoring soil conditions — Leads to early pole failure
- Wrong optics — Using symmetric optics on asymmetric roads
- No maintenance plan — Batteries die or fixtures fail prematurely
💡 Fix: Include a full O&M manual with spare parts plan in every tender.
Case Studies: Street Lighting Design Projects in Africa and the Middle East
Uganda – LED Highway Retrofit
- Replaced 400 HPS fixtures on the Northern Bypass with 80W LEDs
- Achieved 65% energy savings
- Used EN 13201 Class ME2 lighting standard
Saudi Arabia – Smart Solar for Desert Roads
- 10km solar street lighting with LoRa-based smart control
- Custom powder-coated enclosures to resist sandstorms
Nigeria – Urban Safety Lighting in Kaduna
- Community lighting project with 150 solar units
- Crime incidents dropped by 40% in 6 months
- Adopted deep-cycle LiFePO4 batteries with anti-theft mounts
🌍 Takeaway: Smart, locally adapted designs backed by proper calculations make the difference between success and sunk costs.
Final Thoughts: Your Next Step in Street Lighting Design
Whether you’re redesigning a city street or lighting up a rural road, aligning with updated 2025 lighting design methods is no longer optional — it’s a necessity. Poorly lit roads aren’t just a nuisance; they’re a liability. And with solar and smart tech becoming mainstream, your next design should be both future-ready and site-specific.
