High-quality components are the backbone of any smart solar streetlight system. Panels, batteries, and controllers are the true "heart"—they determine everything from performance to longevity.
Panels, batteries, and controllers decide how well your solar streetlights work. This guide shows exactly how to check their quality before you buy.
Many buyers make mistakes by focusing only on appearance. In this article, I will teach you how to make smarter, safer investments.
Why Component Quality is Critical in Smart Solar Streetlights?
Choosing low-quality parts is a recipe for failure. Poor components will lead to constant problems, expensive repairs, and poor lighting performance.
Good components mean longer lifespan, better efficiency, and lower total cost of ownership for your solar streetlights.
Without reliable panels, batteries, and controllers, even the best smart features will fail.
Direct Impact on Lifespan, Performance, and Maintenance Costs
Smart streetlights must last 5–10 years or longer. Only top-tier components make this possible. Inferior products may save money upfront but cost more in maintenance and replacements.
How Smart Features Depend on Reliable Hardware
Smart features like remote monitoring, adaptive lighting, and motion sensing need steady power. Unstable batteries, faulty controllers, or weak panels make these features useless.
How to Check Solar Panel Quality Before Buying?
Not all solar panels are equal. Understanding the differences ensures you get strong, long-lasting lighting.
High-efficiency monocrystalline panels with reliable certifications are your best choice for solar streetlights.
2.1. Solar Panel Type Matters
Monocrystalline, polycrystalline, or thin film—which is best?
- Monocrystalline: Highest efficiency (>18%), long life, compact size. Ideal for streetlights.
- Polycrystalline: Slightly lower efficiency (15-17%), cheaper but bulkier.
- Thin Film: Low efficiency, larger area needed. Not recommended for smart streetlights.
| Panel Type | Efficiency | Best Use Case |
|---|---|---|
| Monocrystalline | >18% | Best for solar streetlights |
| Polycrystalline | 15–17% | Acceptable in budget projects |
| Thin Film | <12% | Not recommended |
2.2. Check the Conversion Efficiency
Higher conversion rates mean better energy capture.
- Good Benchmark: >18% for monocrystalline panels
- Excellent Benchmark: >20% (Premium models)
Ask suppliers for technical datasheets showing efficiency results.

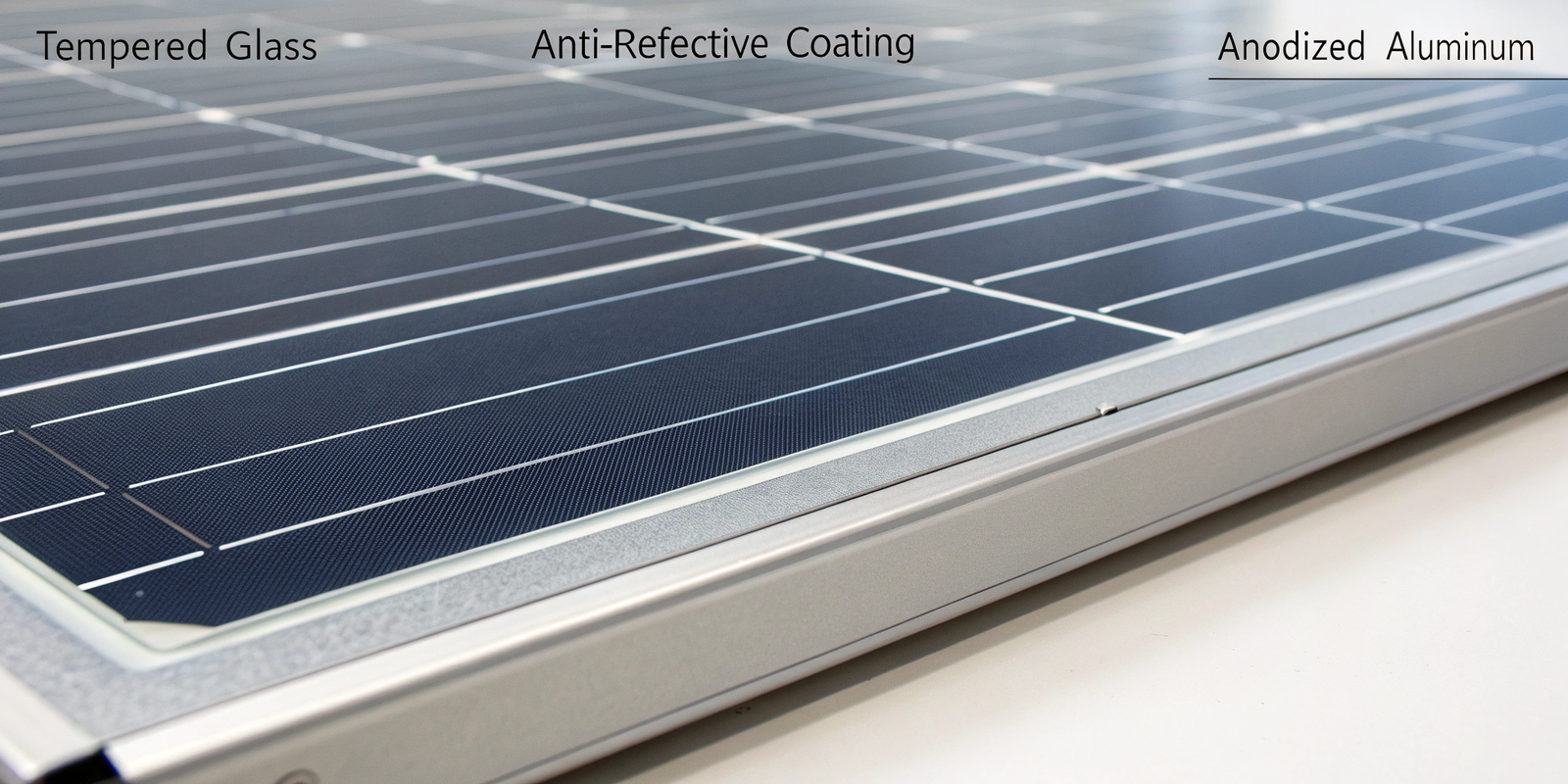

2.3. Inspect the Build and Materials
Look for:
- Tempered glass: Protects against hail and impacts

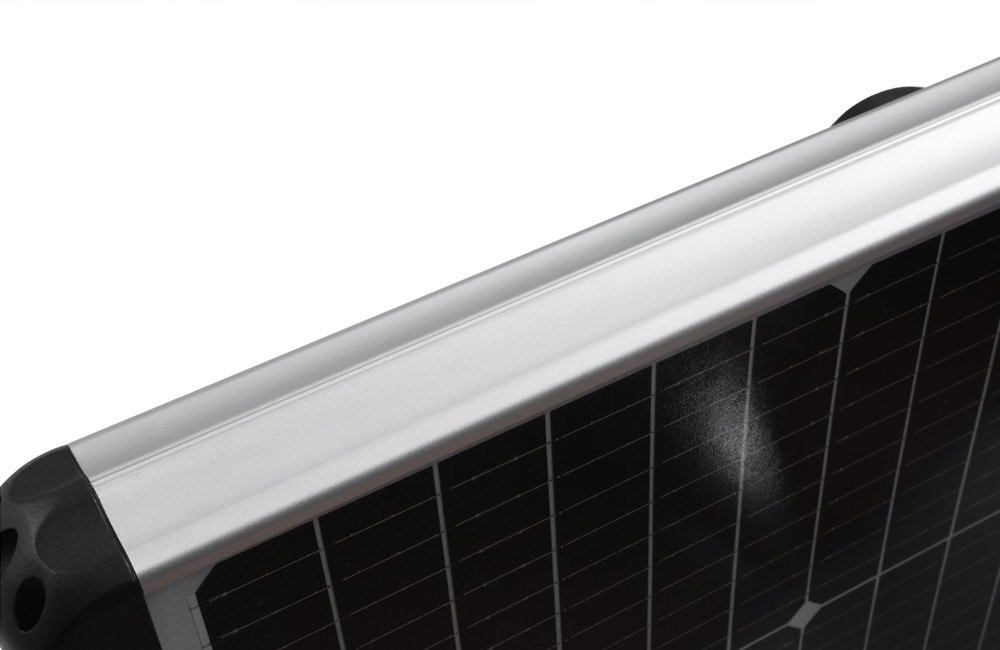

- Strong aluminum frames: Rust-resistant, lightweight
- Anti-reflective coating: Improves sunlight absorption
These details show whether the panel is designed to survive harsh outdoor environments.
2.4. Demand Reliable Certifications
Only trust panels with certifications like:
- IEC 61215
- IEC 61730
- TUV
- UL
Certification ensures real-world performance and safety testing.
2.5. Warranty Terms Indicate Quality
A good solar panel warranty includes:
- Performance warranty: 25 years (80–90% capacity retention)
- Product warranty: 10–12 years
Shorter warranties often signal low-grade materials.
How to Evaluate Battery Quality for Solar Streetlights?
The battery is the powerhouse at night. Poor battery choice will leave your streetlights dead after cloudy days.
Choose lithium batteries with long life cycles, high safety, and proper certifications to avoid early failures.
3.1. Know the Best Battery Types
Different battery types affect performance greatly:
- LiFePO₄ (Lithium Iron Phosphate): Best for longevity, safety (>2,000 cycles)
- Lithium-ion: Good energy density, around 1,000–2,000 cycles
- Lead-Acid: Cheapest, but heavy, short lifespan, needs maintenance
| Battery Type | Cycle Life | Safety | Ideal for |
|---|---|---|---|
| LiFePO₄ | >2,000 | Very Safe | Smart solar streetlights |
| Lithium-ion | 1,000–2,000 | Moderate | Cost-effective projects |
| Lead-Acid | 300–500 | Low | Budget streetlights only |
3.2. Capacity and Backup Time
Batteries should support at least 3–5 days of autonomy during cloudy or rainy periods. Capacity must match:
- Local sunlight hours
- Streetlight wattage
- Operation time (night duration)
3.3. Check Charging/Discharging Cycles
More cycles = better long-term savings.
- Good: >2,000 cycles (LiFePO₄)
- Acceptable: >1,000 cycles (Lithium-ion)
Always ask suppliers for official cycle life data.
3.4. Safety Features Are a Must
Batteries must have built-in:
- Overcharge protection
- Over-discharge protection
- Temperature control
Without these, you risk fire, explosions, or fast battery degradation.
3.5. Brand Reputation and Certification
Only trust batteries with:
- CE Certification
- RoHS Compliance
- UN38.3 Safety Testing
Choose known brands with proven field performance.
How to Verify Controller (Charge Controller) Quality?
Controllers are the brains of the system. Bad controllers will cause power losses and system crashes.
MPPT controllers with waterproof, rugged designs are essential for stable, long-lasting solar streetlights.
4.1. Understand the Controller Types
- PWM Controller: Basic, low-cost, lower efficiency
- MPPT Controller: Advanced, high-efficiency, maximizes panel output
Always choose MPPT controllers for smart solar streetlights.
| Controller Type | Efficiency | Best for |
|---|---|---|
| PWM | 70–80% | Low-cost systems |
| MPPT | 95–98% | Smart solar streetlights |
4.2. Key Features to Look For
Good controllers should include:
- Intelligent load control
- Real-time data logging
- Remote monitoring capabilities
- Temperature compensation
These make your system smarter and easier to manage.
4.3. Build Quality and Durability
Check:
- Waterproof rating: IP67 or higher
- Rustproof housing
- Overheat protection
The controller should survive outdoor dust, rain, and temperature swings.
4.4. Certifications and Standards
Look for controllers certified with:
- UL
- CE
- RoHS
Certification guarantees better manufacturing quality and safer operations.
Practical Tips for Buyers: Quick Quality Checklist
Before buying, make sure the products meet these standards:
✅ Solar Panel Efficiency >18%
✅ Certified under IEC/TUV standards
✅ Lithium (preferably LiFePO₄) Battery with >2,000 cycles
✅ MPPT Charge Controller with waterproof design
✅ Minimum 3–5 year product warranty
✅ Verify all certifications (CE, RoHS, UL)
Print or save this checklist when talking to suppliers!
Common Mistakes to Avoid When Checking Component Quality?
Many buyers get tricked by good-looking designs or big promises. Always check the real specs.
Avoid choosing only by price, appearance, or sales pitch. Check technical details and certifications first.
Mistakes include:
- Trusting looks over specs
- Ignoring certification and warranty
- Picking the cheapest offers
- Not asking for real-world testing reports or field case studies
A few hours of careful checking can save you years of problems later.
Conclusion
Checking the quality of solar panels, batteries, and controllers is non-negotiable when buying smart solar streetlights. Always demand clear technical data, certifications, and test reports. Reliability is worth much more than a small upfront saving. Buy smart, invest wisely, and secure a better future for your lighting projects.
