1. Why Proper Light Pole Installation Matters
Proper installation of light poles is essential for safety, durability, and efficiency. Whether you are installing poles for commercial areas, residential neighborhoods, parking lots, sports fields, or street lighting, several key factors must be considered before starting:
✅ Location and application type (commercial, residential, public spaces, etc.)
✅ Wind and environmental conditions (EPA wind resistance standards)
✅ Soil conditions (foundation depth depends on soil type)
✅ Local regulations (permit and compliance requirements)
This guide provides detailed installation methods, cost analysis, and solutions to common challenges to help you complete your project safely and efficiently.
2. Pre-Installation Planning
2.1 Understanding Local Regulations
Different cities and regions have specific regulations for light pole installation, including:
- EPA (Effective Projected Area) wind resistance standards
- Electrical safety codes
- Foundation and construction requirements
💡 Recommendation: Consult a structural engineer and electrician before installation to ensure compliance with local requirements.
2.2 Evaluating Environmental and Soil Conditions
Soil type significantly affects the stability of light poles. Here’s how different soil types impact installation:
| Soil Type | Characteristics | Installation Difficulty |
|---|---|---|
| Sandy Soil | Low load-bearing, prone to erosion | ⭐⭐⭐ (Requires deeper foundation) |
| Clay Soil | Retains water, expands and contracts | ⭐⭐ (Needs reinforcement) |
| Rocky Soil | Hard to excavate but highly stable | ⭐⭐⭐⭐ (Requires specialized equipment) |
💡 Tip: Conduct a geotechnical survey before excavation to ensure a stable foundation.
3. Choosing the Right Light Pole Installation Method
There are two primary installation methods: Direct Burial (Embedded) and Anchor-Based (Bolt-Down). Each method is suitable for different applications.

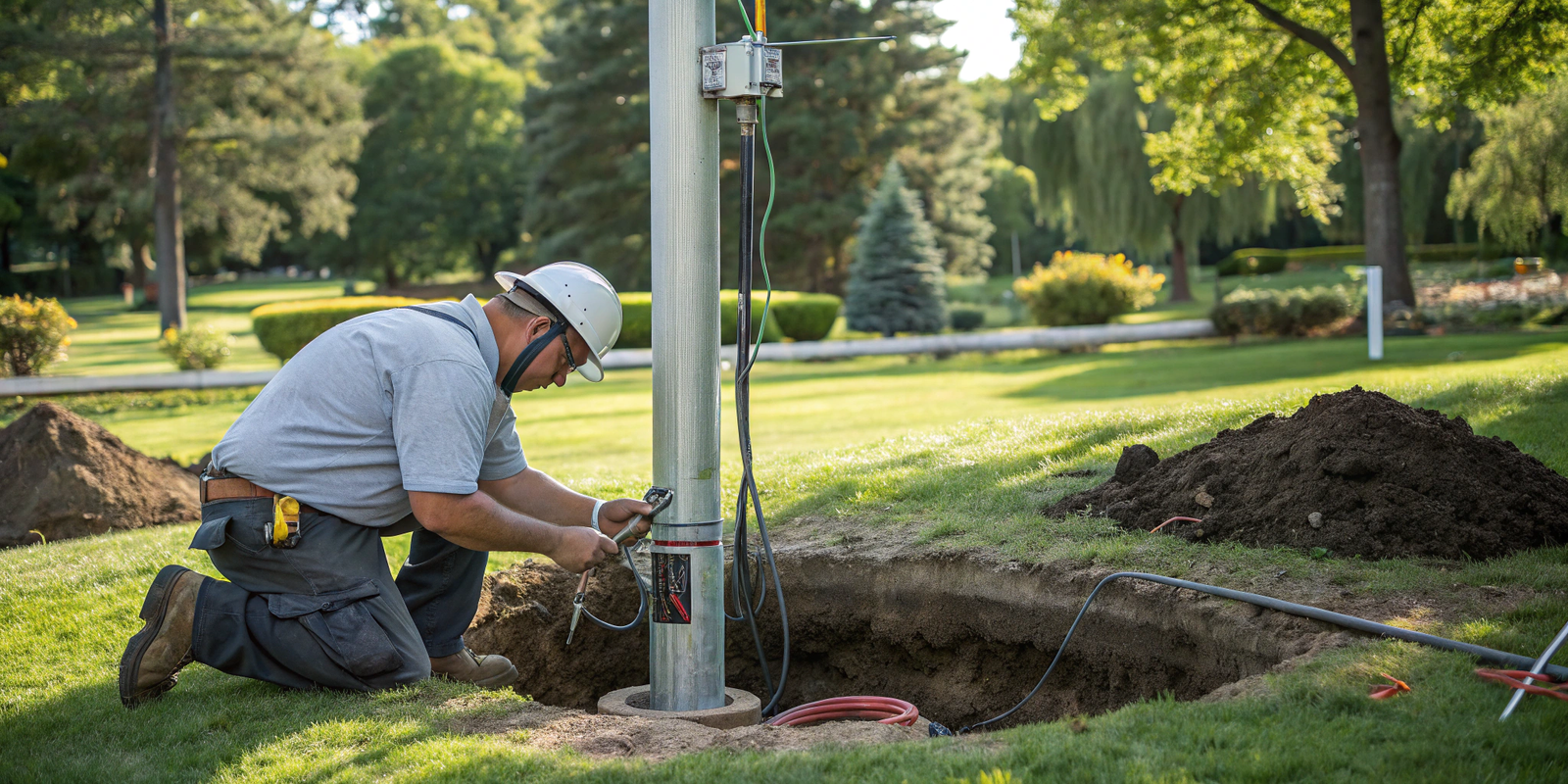

3.1 Direct Burial Light Pole Installation
🔹 Best for: Residential areas, parks, sports fields
🔹 Pros: Lower cost, quick installation, no additional foundation required
🔹 Cons: Less resistant to strong winds, harder to replace
Installation Steps
1️⃣ Attach light fixtures and accessories before raising the pole
2️⃣ Thread the electrical wiring from the top fixture to the base access hole
3️⃣ Dig the hole (depth depends on pole height):
- 8-18 feet → 3 feet deep
- 18.1-25 feet → 4 feet deep
- 25.1-40 feet → 5 feet deep
- 40.1-50 feet → 6 feet deep
4️⃣ Compact the soil at the bottom and sides of the hole
5️⃣ Insert the pole and align the cables properly
6️⃣ Backfill 4-6 inches of soil while using a plumb bob to check alignment
7️⃣ Continue backfilling and compacting to ensure the pole is stable
8️⃣ Connect electrical wiring and follow local codes
💡 Improvement Option: Use concrete fill to enhance pole stability in softer soil.
3.2 Anchor-Based Light Pole Installation
🔹 Best for: Parking lots, commercial areas, high-wind locations
🔹 Pros: High wind resistance, easier replacement
🔹 Cons: Higher cost, longer installation time
Installation Steps
1️⃣ Prepare the concrete foundation:
- Dig a foundation pit
- Install anchor bolts and secure them with a template
- Pour concrete and allow it to cure (48-72 hours)
2️⃣ Install the pole:
- Pre-attach fixtures and wiring
- Use a crane or forklift to position the pole
- Secure it with nuts and washers and check alignment with a plumb bob
- Connect the electrical wiring and test the system
💡 Anchor-based installation is recommended for commercial and public spaces due to its impact resistance and long-term durability.
3.3 Helical Pier Foundation Installation (Alternative to Concrete)
🔹 Best for: Wind turbines, utility poles, solar panels
🔹 Pros: No concrete needed, fast installation, suitable for unstable soil
Key Features:
- Uses a helical steel anchor that screws directly into the ground
- Installed with hydraulic rotary equipment
- No excavation or concrete pouring required
4. Wiring the Light Pole: Safety and Best Practices
- Always turn off power before handling electrical wiring
- Essential tools: Wire strippers, wire nuts, multimeter
- Recommendation: Hire a certified electrician to ensure compliance with electrical codes
5. Residential vs. Commercial Light Pole Installation
| Factor | Residential Installation | Commercial Installation |
|---|---|---|
| Pole Material | Lightweight aluminum | Heavy-duty steel |
| Foundation Type | Direct burial or concrete fill | Anchor-based for durability |
| Installation Time | Short (few hours) | Longer (several days) |
| Maintenance Cycle | Low | High (requires regular checks) |
6. Cost Analysis of Light Pole Installation
| Installation Method | Estimated Cost |
|---|---|
| Direct Burial | $200 - $500 |
| Helical Pier | $500 - $700 |
| Anchor-Based | $600 - $1,000 |
💡 Recommendation:
- On a budget? → Choose Direct Burial
- For long-term durability? → Opt for Anchor-Based
- Need quick installation? → Helical Pier Foundation is a great choice
7. Common Light Pole Installation Mistakes (and How to Avoid Them)
❌ Misaligned anchor bolts → Measure and drill accurately
❌ Crooked pole installation → Use a plumb bob to ensure vertical alignment
❌ Skipping professional consultation → Hire an engineer for foundation assessment
8. Post-Installation Maintenance & Inspection
🔍 Inspect poles twice a year for structural integrity
🧼 Clean regularly to remove dirt and corrosion
🎨 Apply protective coatings to prevent rust
🛠 Replace damaged components promptly
9. Conclusion
Proper light pole installation improves safety, extends lifespan, and reduces long-term maintenance costs. Selecting the right installation method, following proper procedures, and conducting regular maintenance ensures efficient outdoor lighting solutions.
